Shanling launch SM1.3 streamer
Key features include Android 12, AKM4499EX DAC, M.2 SSD slot, Wi Fi 6 and a 5.8 inch touchscreen for $1199, £1199 and €1199.
.jpg "Shanling SM1.3 with Shanling S0 speakers")

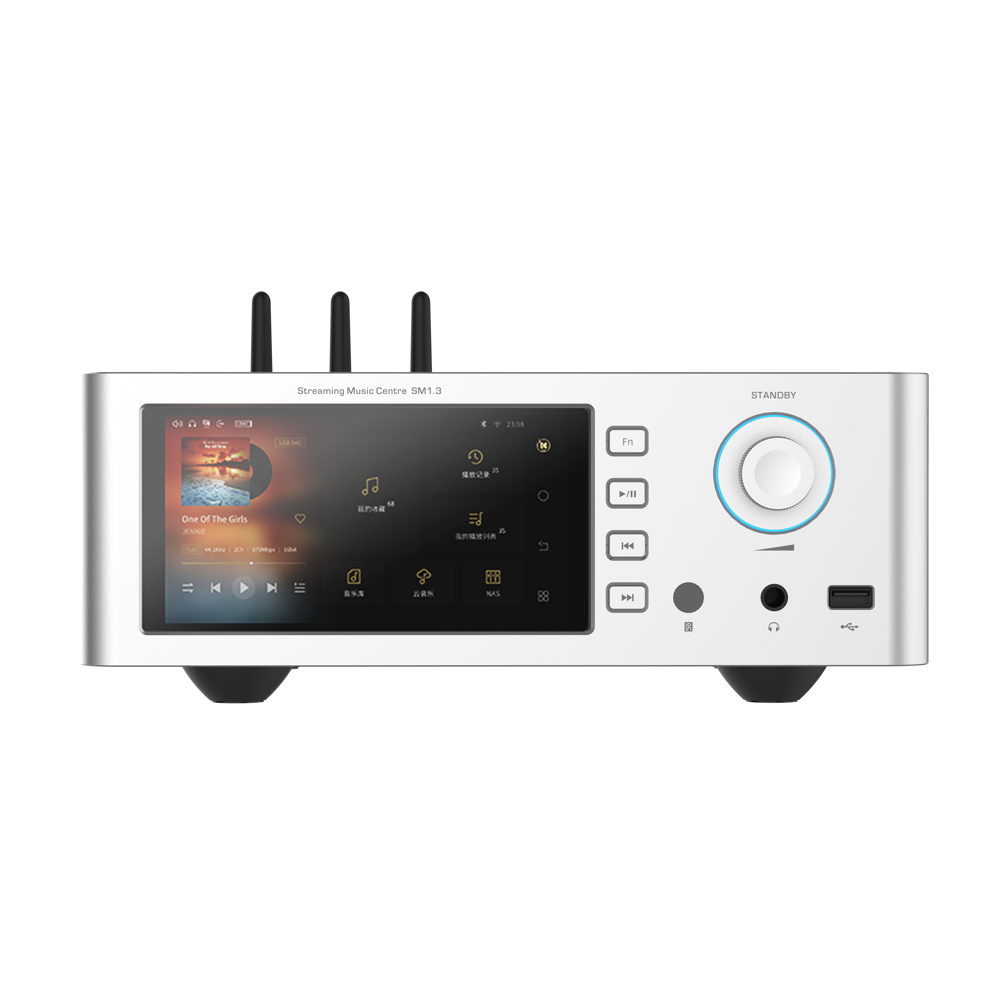

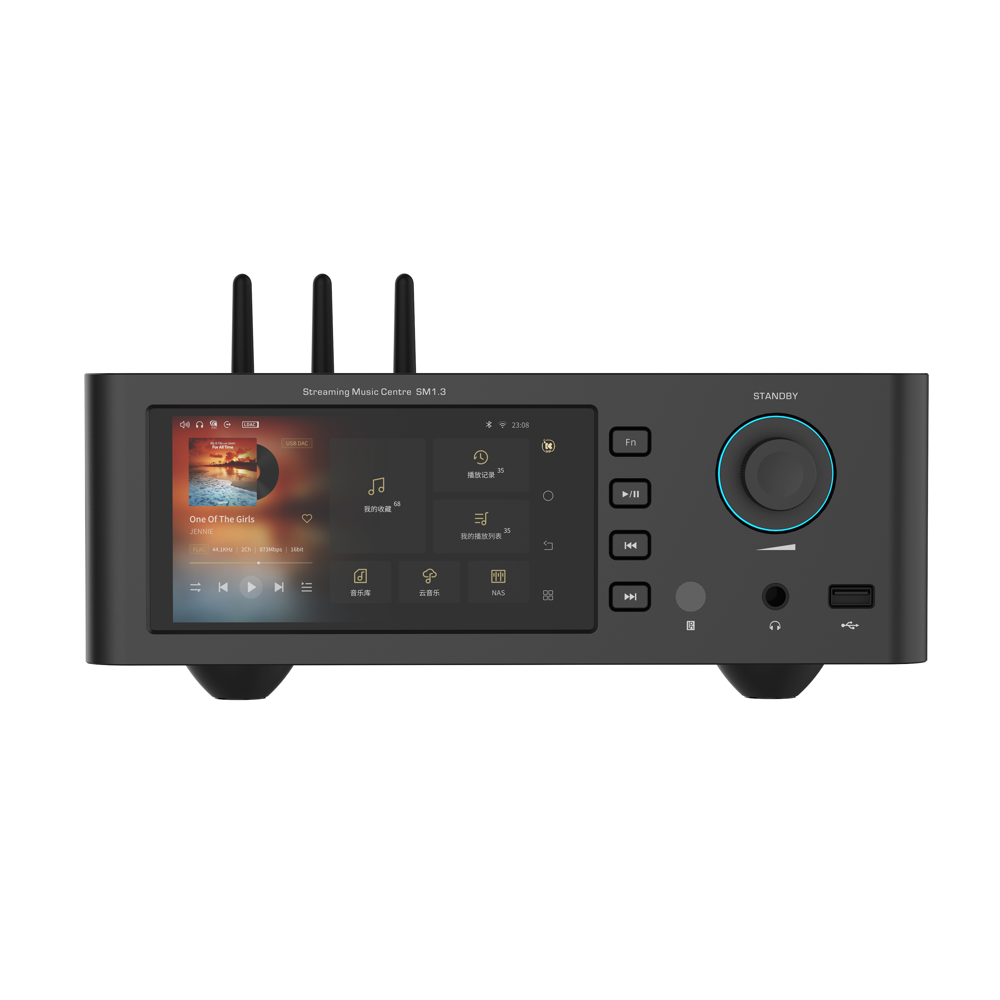

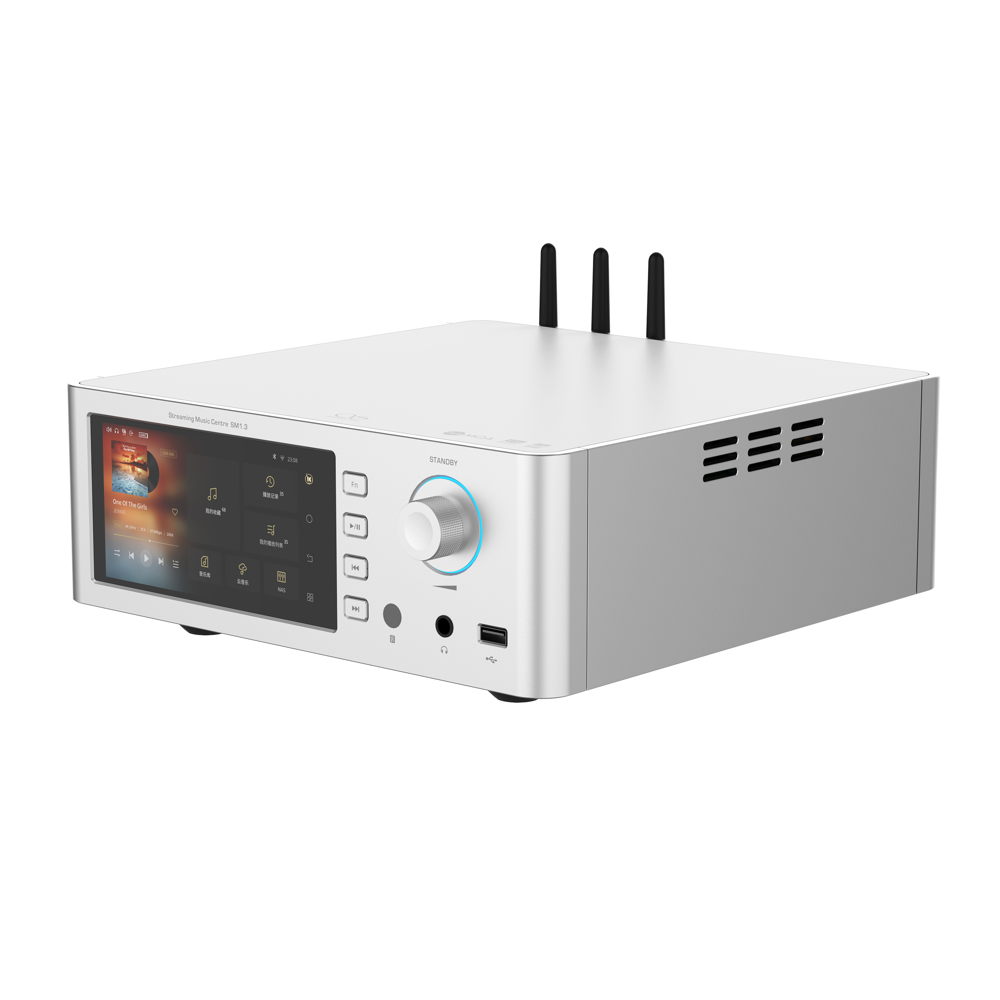

The Shanling SM1.3 streamer is a compact, feature packed streamer which offers cutting edge tech in an easy to use package.
A flagship AKM4499EX DAC joins the AK4191 Modulator for a new sonic standard at the price. Comprehensive input and output stages cater for all audio set ups and a high quality TPA6120 dedicated headphone amp allows simple and easy private listening sessions.
Featuring native support for streaming apps such as Spotify, TIDAL, Apple Music, Apple Classical and Amazon Music, the SM1.3 also boasts a USB input for flash drives and a M.2 SSD slot for larger digital music collections and instantly creates a DLNA compatible music hub.

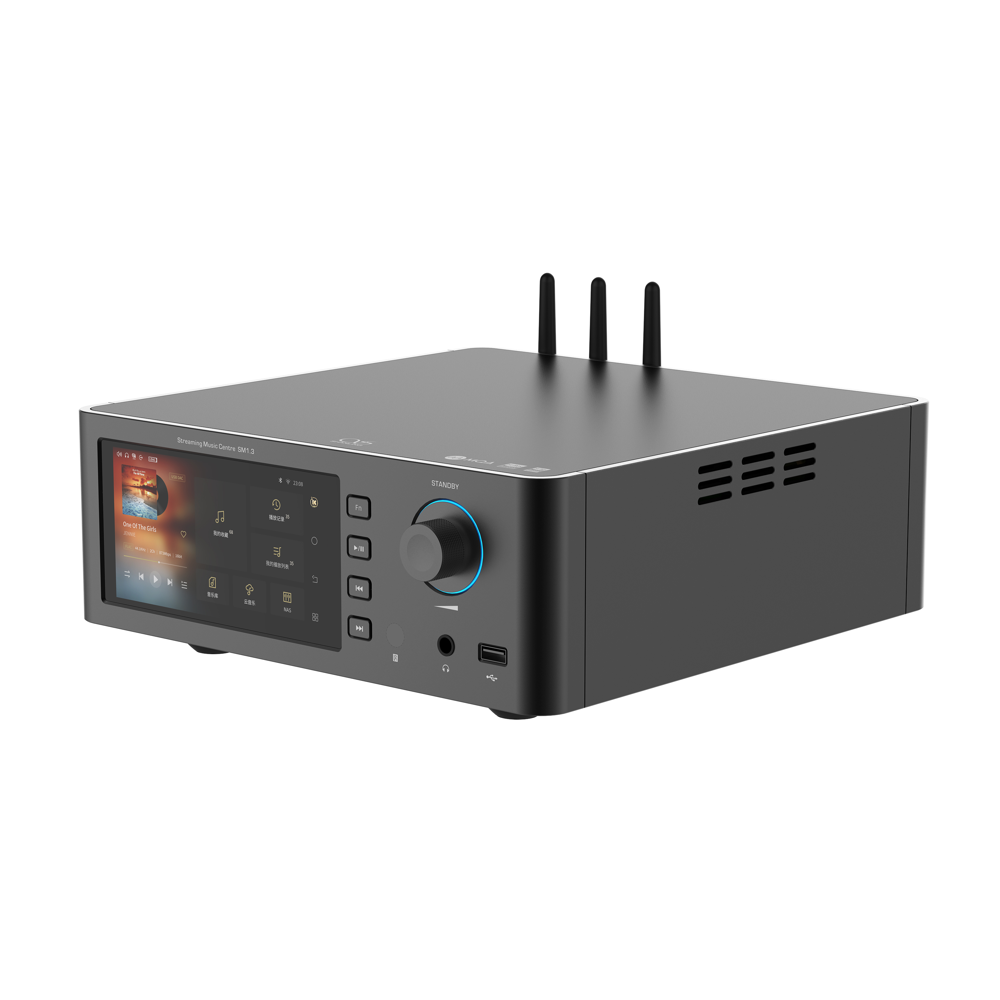

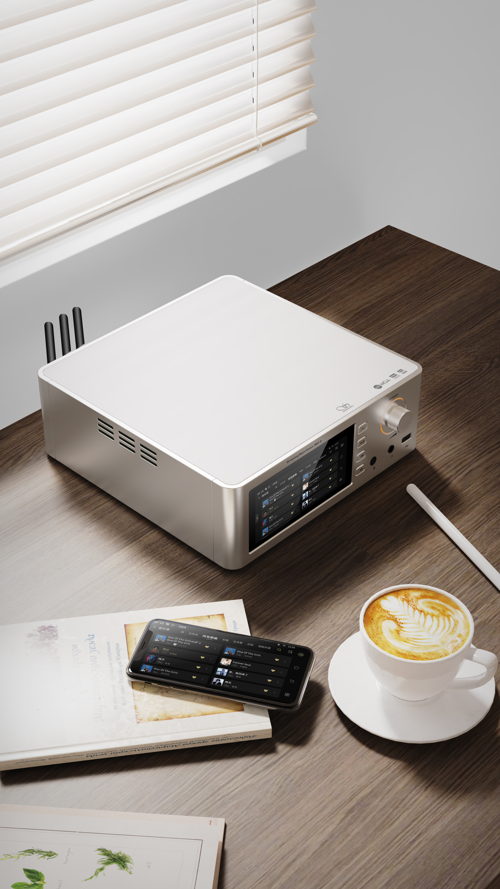

The 5.8 inch touchscreen is clear, fast and responsive and the SM1.3 can also be controlled with the Eddict app for Android and iOS.
Wi-Fi 6 is on board alongside AirPlay 2 plus a dedicated ethernet port for easy access to your network. Bluetooth 5.2 means both LDAC and APTX HD are supported and the output stage offers traditional optical and coaxial options but a RCA and XLR analog stage is present as is a I2S digital output with an FPGA offering 10 compatibility modes. Such additions mean the Shanling SM1.3 is a truly next-gen streamer and meets the need of all audiophiles in an easy and compact (28cm x 28cm x 110cm) solution.
The Shanling SM1.3 is available from November 8th, priced $1199, £1199 and €1199.
The pictured Shanling S0 active speakers are available now priced $399, £399 and €399.
For review samples, please contact Starscream Communications.
Please scroll down for a list of all technical specifications and a high res image gallery.
Starscream Communications
.jpg)
IMAGE DOWNLOAD
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
EXTENDED TECHNICAL SPEC
- Streaming apps: Spotify, Tidal, Apple Music, Apple Classical, Amazon Music, KKBox
- Support NAS, Samba, DLNA, Airplay 2
- New Eddict Controller app – Direct control over local file playback & Wireless Projection for complete control over streaming

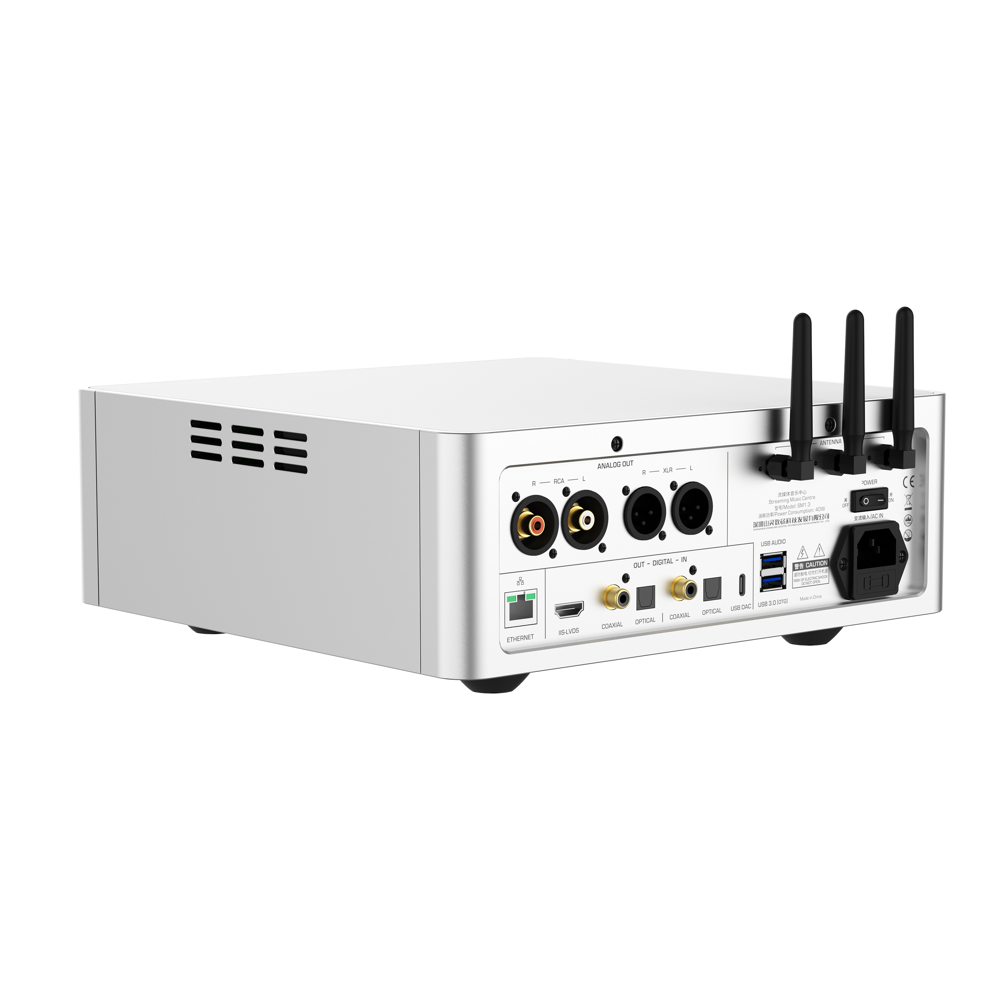

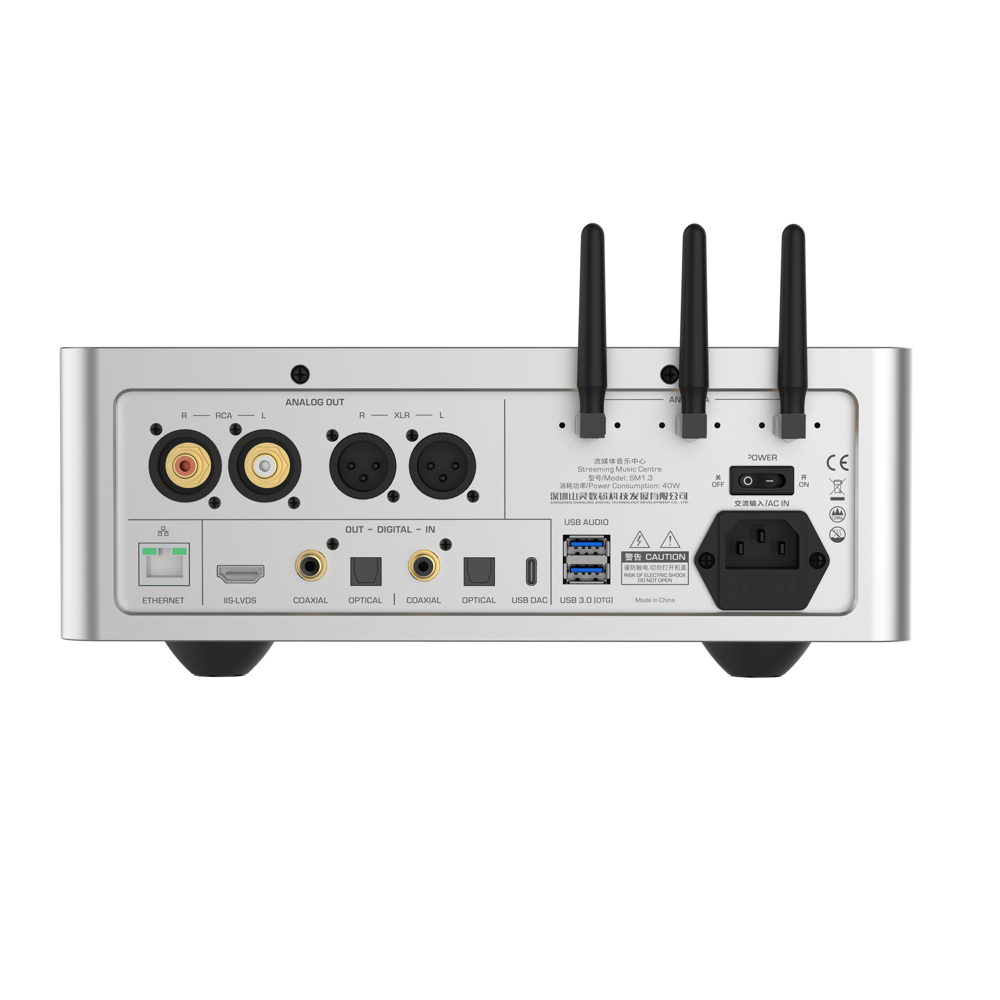

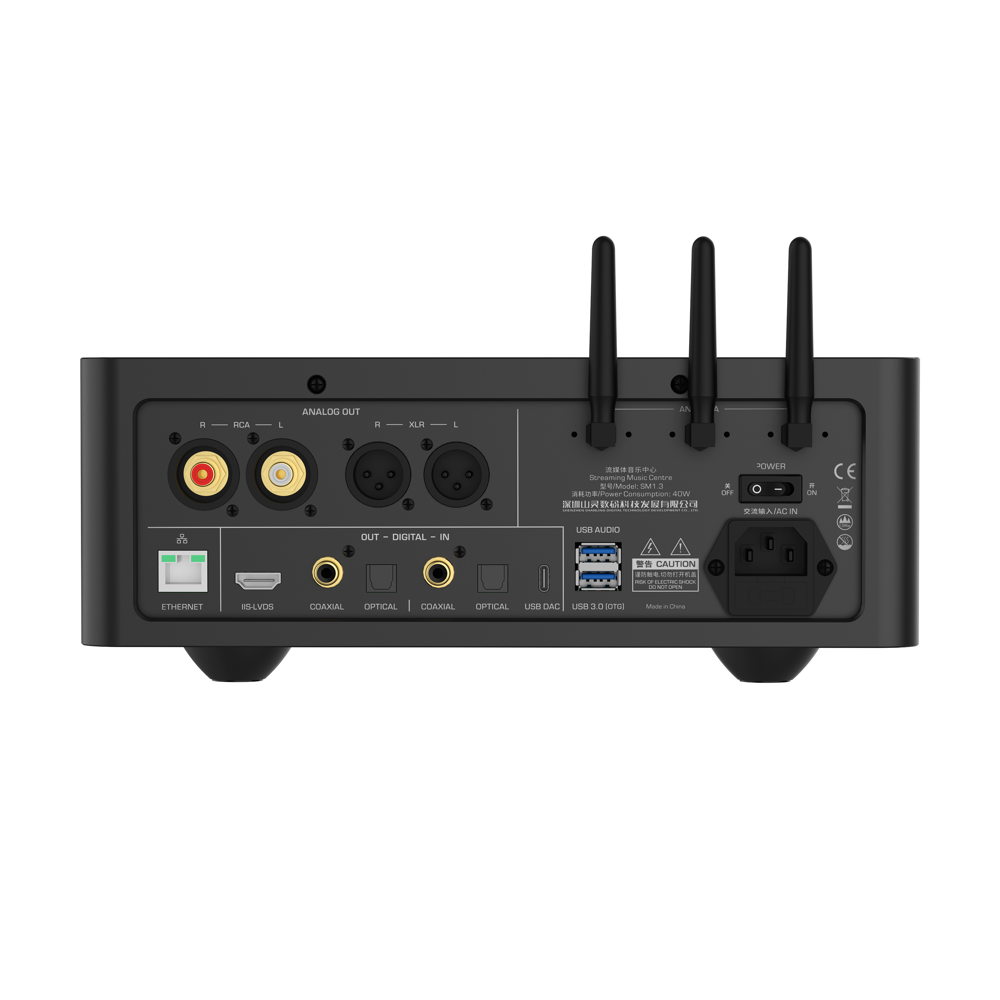

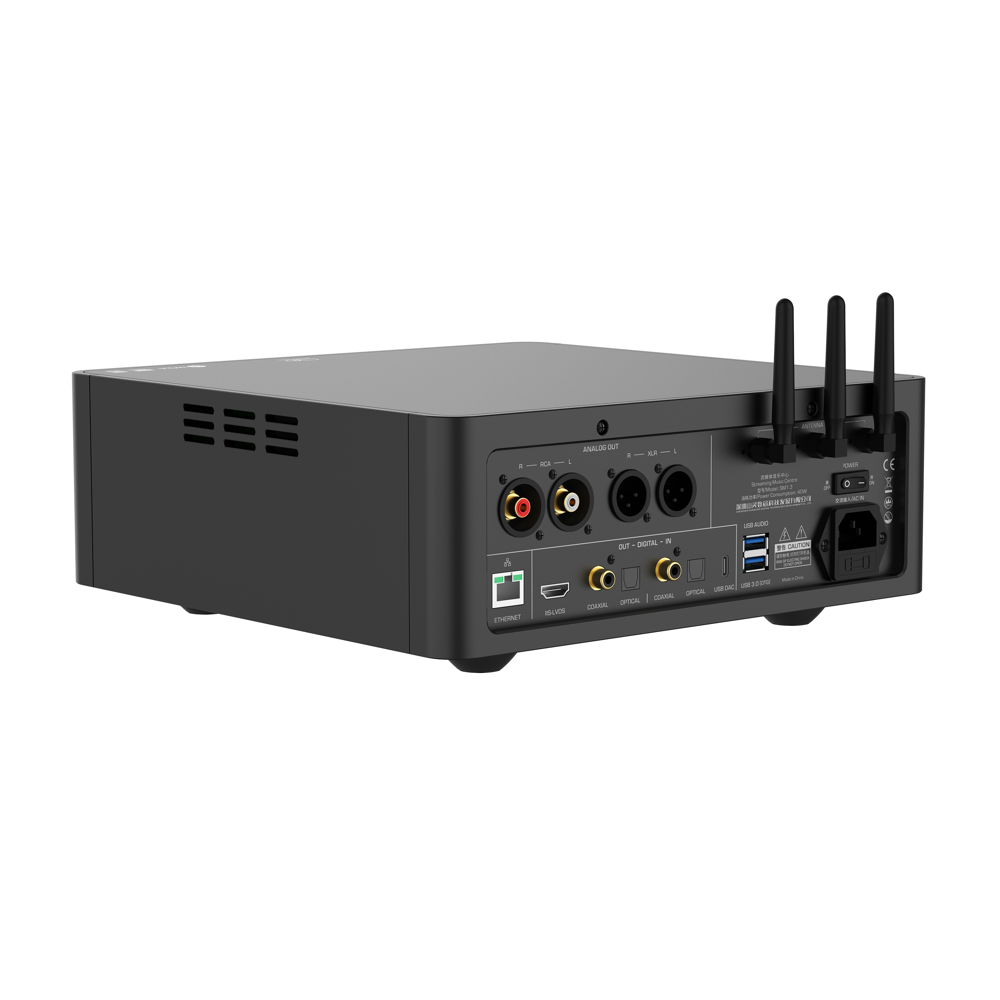

- Digital Input: Optical / Coaxial / Bluetooth / USB
- Digital Output: Optical / Coaxial / I²S / USB
- Analogue output: RCA / XLR / 6.35mm headphone output
- Others: USB-A (for USB drive connection)
OUTPUT SPECIFICATION
RCA output:
Output level: 2.36V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic range: 118dB
Channel Separation: 117dB
Signal-to-noise ratio: 118dB
XLR Output:
Output level: 4.72V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 121dB
Channel Separation: 117dB
Signal-to-noise ratio: 121dB
Headphone Output:
Output power:
Low Gain: 0.79mV@32Ω (19mW@32Ω)
Medium Gain: 2.4V@32Ω (180mW@32Ω)
High Gain: 5.7V@32Ω (1015mW@32Ω)
High Gain: 6.3V@300Ω (132mW@300Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0013%@ 32Ω (A-Weight@2.4V中增益)
Dynamic Range: 117dB@32Ω
Channel Separation: 70dB@32Ω
Signal-to-Noise Ratio: 117dB@32Ω (A-Weight High Gain)
Noise: 111dB (Low Gain)
Output Impedance: 4.7Ω
Digital Port Specifications
Coaxial Input: PCM192kHz / 24bit
Optical Input: PCM192kHz / 24bit
USB Input: PCM768kHz / 32bit, DSD512
Coaxial Output: PCM192kHz / 24bit
Optical Output: PCM192kHz / 24bit
USB Output: PCM768kHz / 32bit, DSD512
I²S output: PCM768kHz, DSD512
