FiiO announce the FA19: Flagship In-ear Monitors with 10 Balanced Armature Drivers

Featuring custom Knowles BA Drivers, Rubycon Audiophile-grade Film Capacitor Crossover, 'Monitor/Hi-Fi' Mode Switch, Swappable 3.5mm/4.4mm audio plugs, and 8 Strand/224 Wire Pure Silver Cable. Available from May, priced £999 / $999 / €1,099

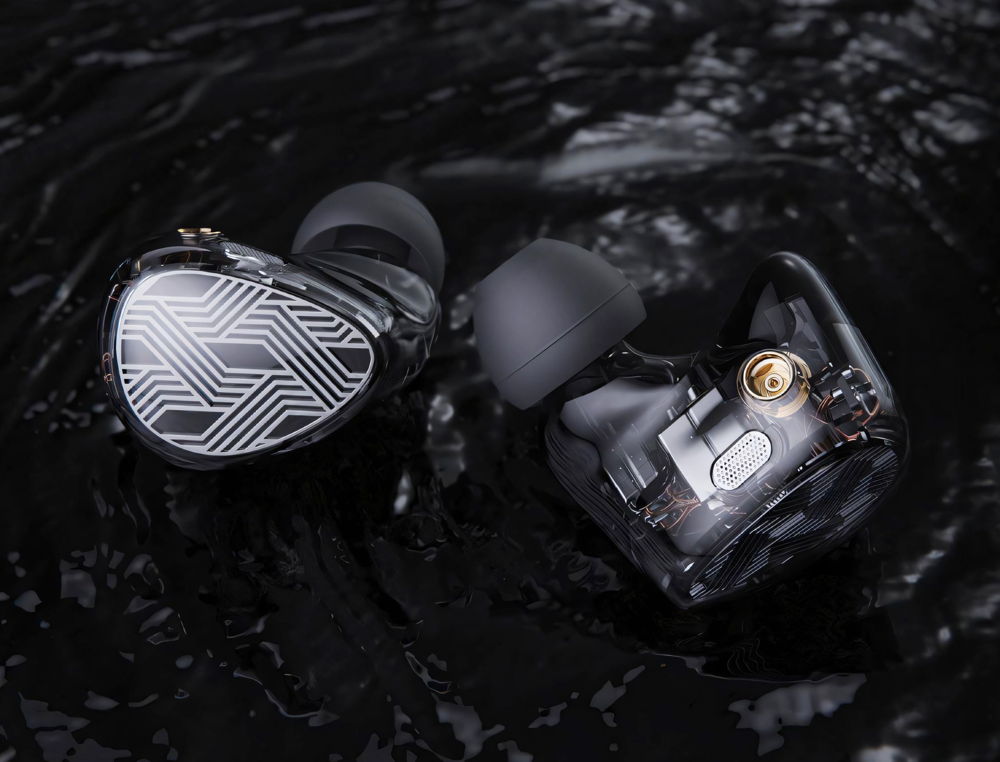

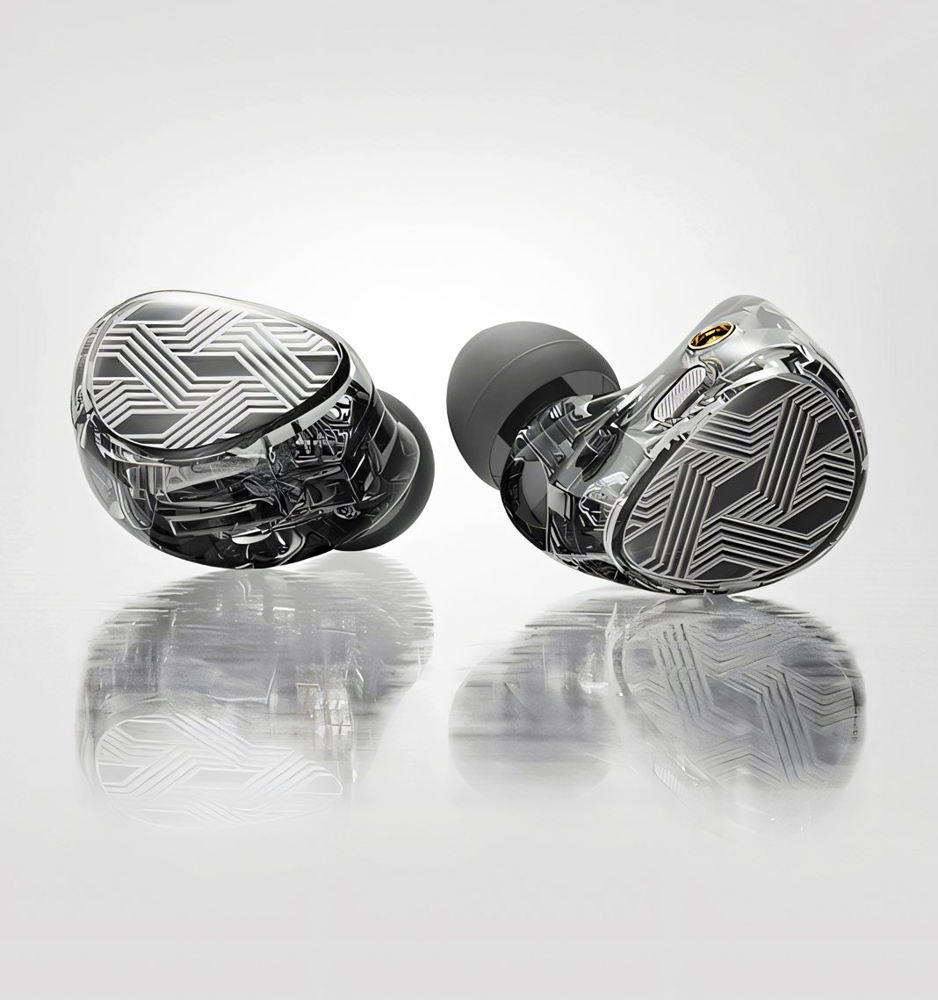

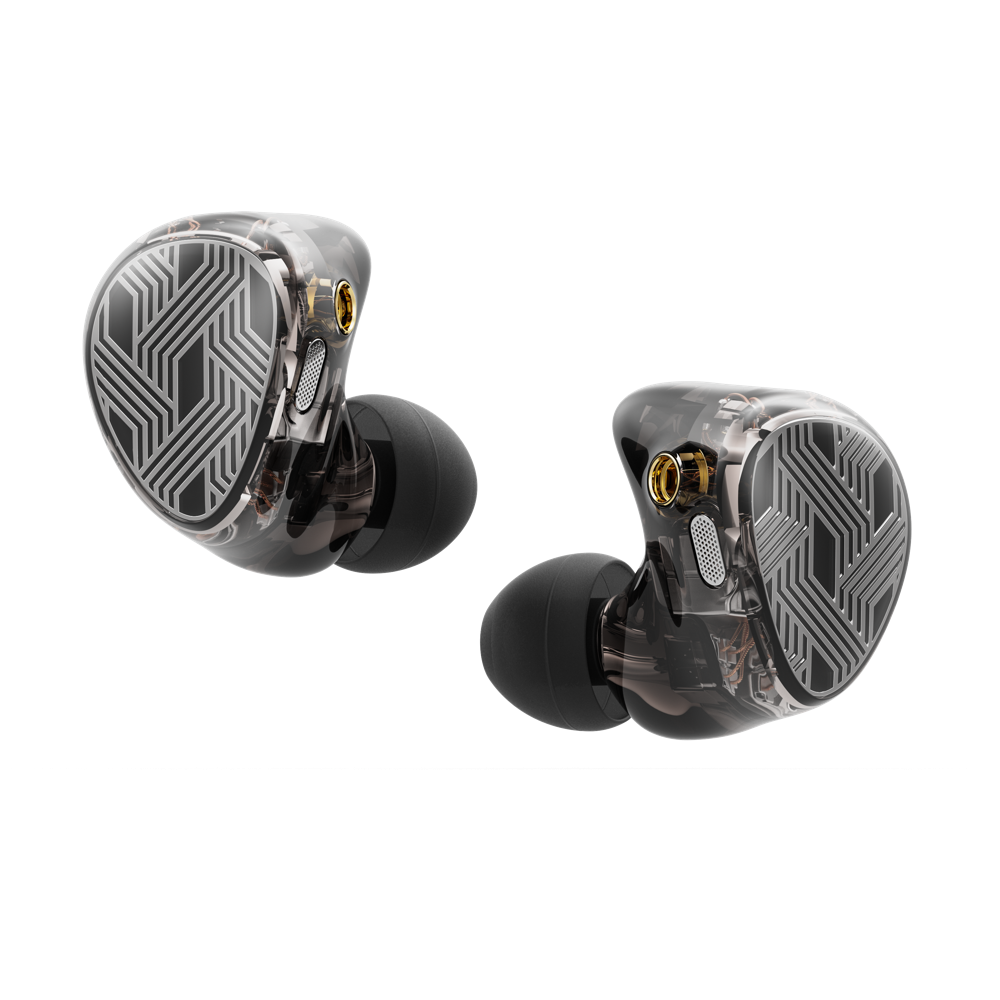

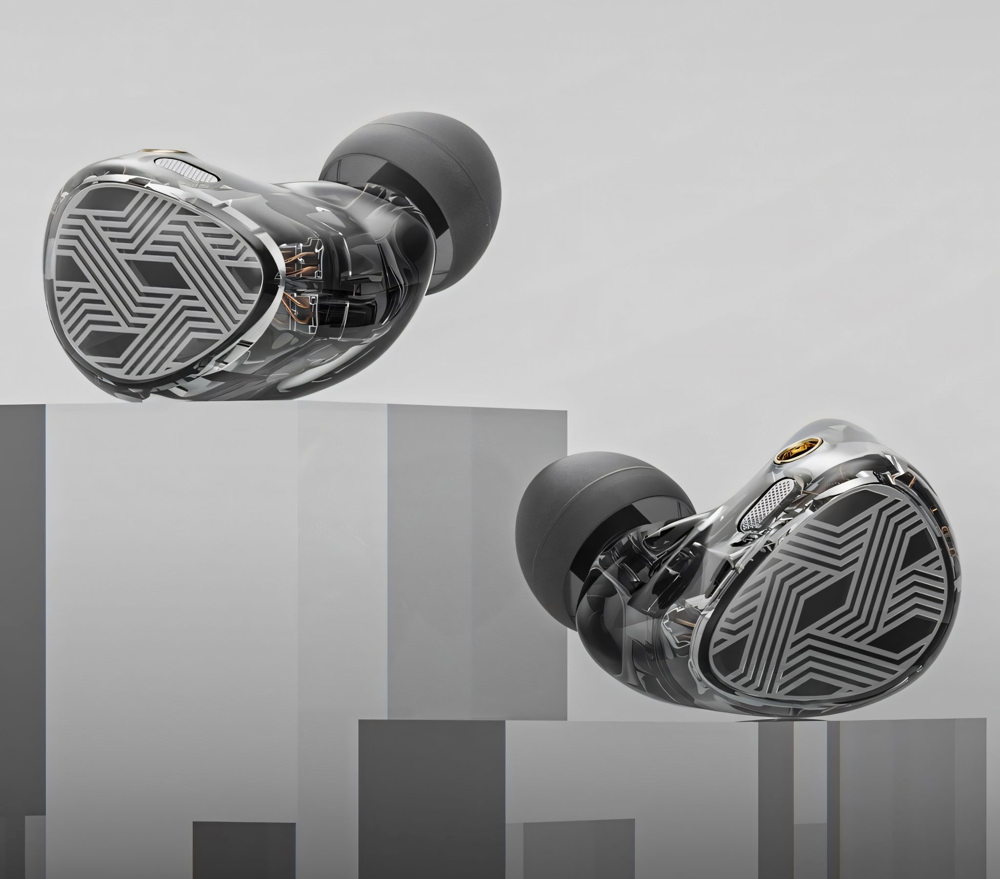

FiiO FA19 IEMs
FiiO FA19 IEMs

Building upon the success of previous award-winning portable audio equipment, and utilising the expertise that has produced its highly respected range of Digital Audio Players (DAPs), Headphone DACs and Desktop Streamers, the new FA19 are FiiO's flagship In-ear Monitor (IEM) headphones.

Designed from the ground-up — and incorporating several innovative technologies — with the FA19, FiiO's engineers have delivered a pair of outstanding IEMs that offer an incredibly musical sound and robust impactful bass, alongside a dynamic & balanced soundstage.


FiiO will be demonstrating the FA19 alongside other products at the Munich High-End Show in Hall #1, Booth B05, from 9-12th May. To book an appointment, please contact Starscream Communications.


KEY FEATURES:

10 Knowles Balanced Armature Design

The new FA19 IEMs utilise 10 Balanced Armature (BA) drivers per ear: 4 x Custom Knowles Bass BA Drivers, 2 x Knowles ED Mid BA Drivers, and 4 x Knowles SWFK Treble BA Drivers.

Custom Knowles Bass BA Drivers

To ensure the FA19 deliver a truly coherent and resolving sound — alongside hundreds of hours of listening & careful tuning of the IEMs frequency response curve — FiiO's engineers collaborated with renowned audio component manufacturer, Knowles, to develop a custom enhanced bass balanced armature driver specifically designed to provide a deep low-frequency listening experience.

By improving the airflow throughput these enhanced bass drivers, overall energy has been significantly enhanced. FiiO also worked closely with Knowles to optimise the mid and high-frequency drivers, ensuring a highly detailed, smooth sound output.

Negative Feedback Bass Enhancement System

With the FA19 able to deliver a highly controlled robust bass, FiiO's engineers made use of advanced DLP-3D printing technology — with a precision of up to 0.0375mm — to create an IEM shell that helps to guide these low-frequencies into the earphone’s rear cavity. This effectively lowers the resonant frequency there, enabling a unique negative feedback bass enhancement system. The result is an In-ear Monitor able to deliver an extremely powerful, deep bass, uncommon among IEMs of its class.

This innovative negative feedback system also improves overall comfort — ​ by ensuring that the front cavity of the FA19 IEMs is adequately vented, FiiO has significantly reduced wearing discomfort that can sometimes be caused by excessive pressure in the IEMs front cavity.



Mid-frequency Notch Filter

In addition to 4 x Custom Knowles Bass BA Drivers, the FA19 utilises 2 x Knowles ED Mid BA Drivers which are renowned for their high resolution. However — in certain implementations — there may be instances of sibilance which could impact upon the overall listening experience. To address this the FA19 incorporates a specially designed Mid-frequency Notch Filter to weaken the high-frequency signals of the mids unit — thus achieving bandpass physical crossover — in three ways:

  1. Enhanced mid-range: By increasing the sound pressure levels between 1kHz and 3kHz, the FA19's Mid-frequency Notch Filter ensures a seamless mid-range reproduction, lending a more detailed and lifelike sound reproduction.
  2. Sibilance elimination: The Mid-frequency Notch Filter effectively filters out the 8kHz peak of the mid-frequency BA driver. Doing so reduces the overlap in frequency response range between the mid and treble BAs, eliminating sibilance and enhancing overall clarity.
  3. Refined treble: Additionally, the Mid-frequency Notch Filter shifts the crossover point between multiple drivers to 3.5kHz. By establishing a clean separation between the mid and treble drivers, both sets of drivers properly work to their maximum potential within their designated frequency ranges without any interference.

Rubycon Audiophile-grade Crossover Capacitors

The FA19 employs audiophile-grade film capacitors as its electronic crossover components, which boast exceptional precision. Whereas typical resistors used for crossovers can have an error tolerance of around 1%, the FA19’s resistors have an impressively low error tolerance of just 0.1%.

Compared to ordinary ceramic capacitors, the FA19 not only attains more accurate crossover points, but also features enhanced high-frequency resolution without sacrificing finesse.

'Monitor/Hi-Fi' Mode Switch

The FA19 allows users to choose between two carefully crafted listening modes, by easily flipping a switch on the back of the IEMs. 'Monitor' mode, delivers clean detailed sound, enhancing the treble. 'Hi-Fi' mode enhances the mid-range and bass.

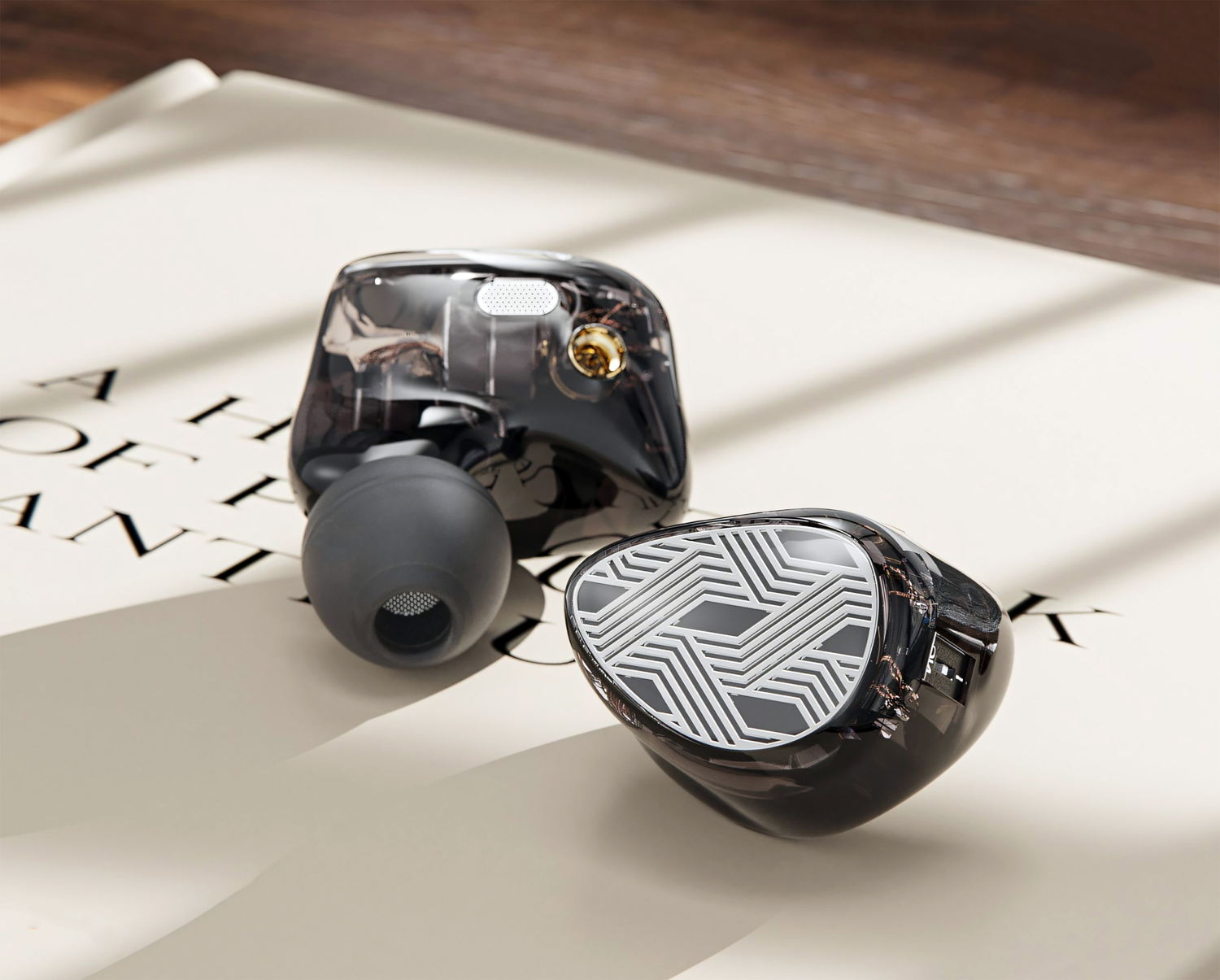

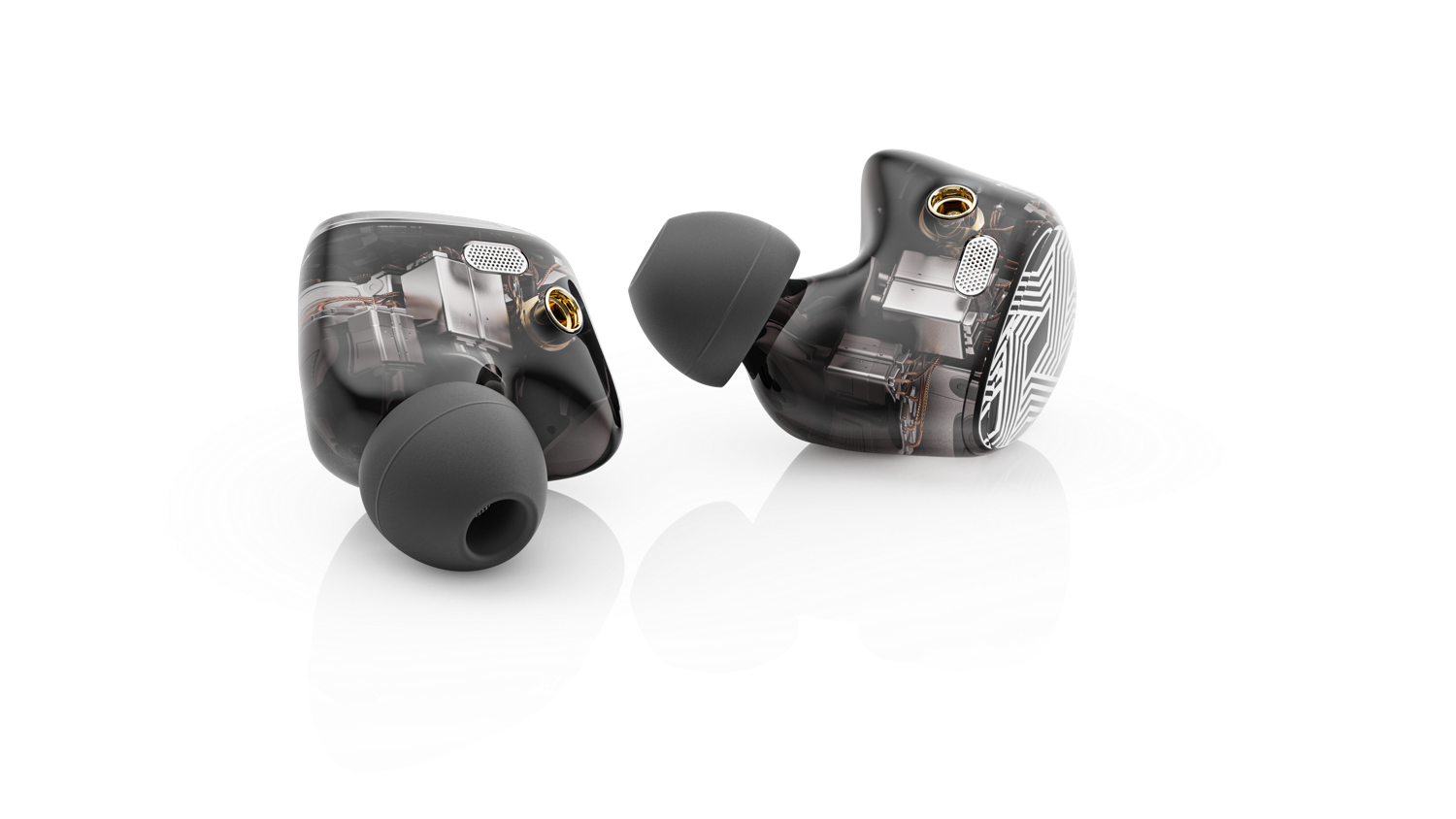

FiiO FA19 IEMs
FiiO FA19 IEMs

S.Turbo Patented Acoustic Design

The FA19 incorporates FiiO’s patented S.Turbo Acoustic Turbine-shaped Design. By extending the tube that guides low frequencies, it serves as a filtering device that effectively eliminates high-frequency sound waves from the bass BA drivers, ensuring a smooth transition between low and mid frequencies.

High-end Cable with Swappable Plugs

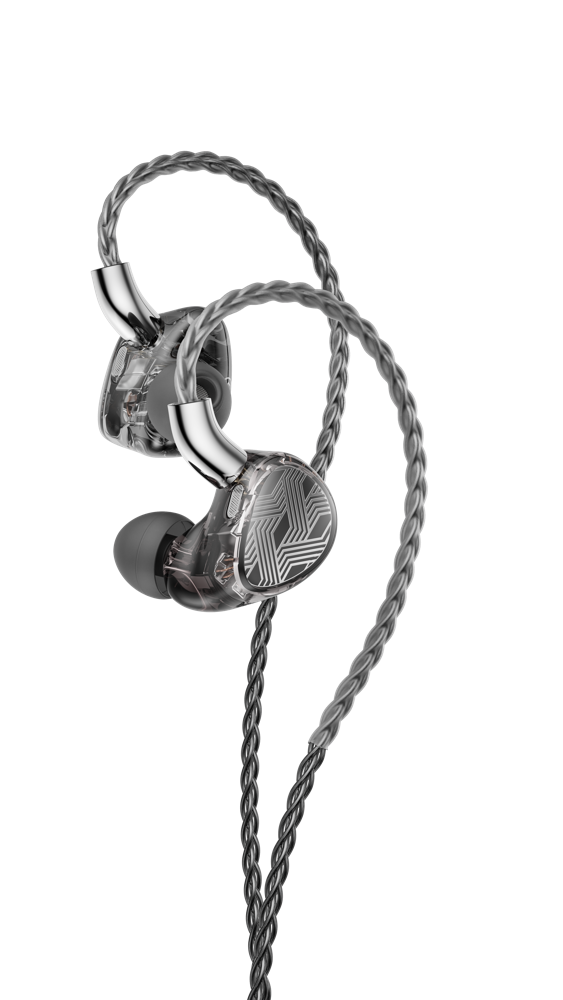

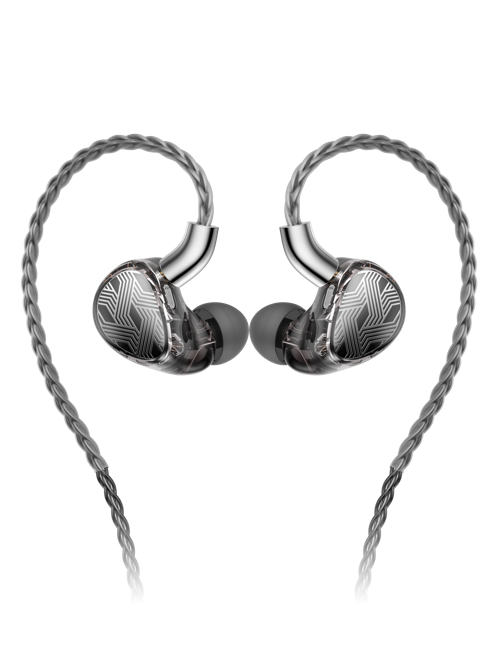

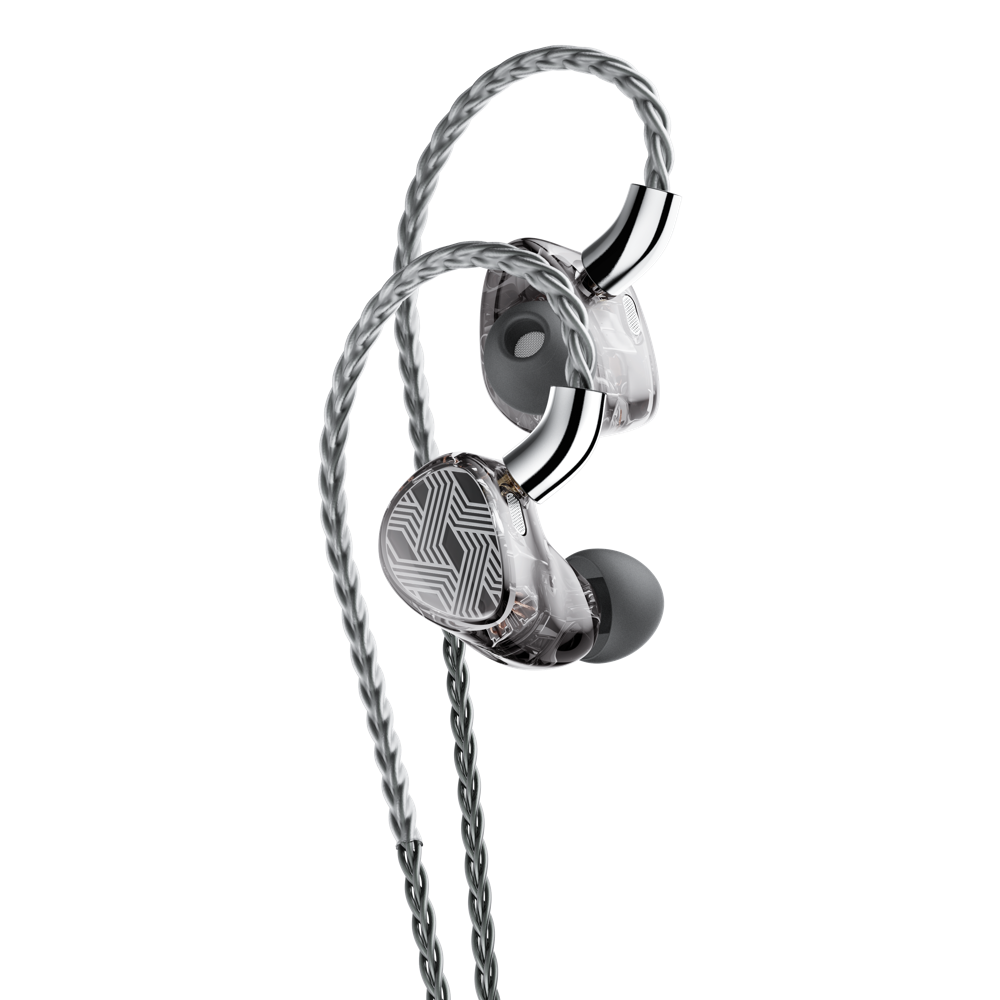

The FA19 comes supplied with a high-purity pure silver cable, consisting of 8 strands of 28 wires each for a total of 224 wires. Each individual wire is independently insulated, and the cable is twisted using a Litz structure. The cable sheath is made from transparent TPU; effectively preventing yellowing due to prolonged use and stiffening of the cable due to use in low-temperature environments.

In addition, the FiiO FA19 comes with two twist-lock swappable jack plugs — 1 x 3.5mm single-ended, and 1 x 4.4mm balanced — ensuring the IEMs can be used with a wide range of audio devices including, Digital Audio Players (DAPs), Headphone Amplifiers, PCs and more.

The FiiO FA19 will be available from May, priced £999 / $999 / €1,099.



FiiO will be demonstrating the FA19 alongside other products at the upcoming Munich High-End Show in Hall #1, Booth B05, from 9-12th May.

For review samples, or to book an appointment at Munich High-End Show, please contact Starscream Communications.



Starscream Communications

Starscream Communications



SPECIFICATION:

Headphone Type

10 x Balanced Armature (BA) In-Ear Monitors (IEMs)

Drivers

4 x Custom Knowles Bass BA Drivers

2 x Knowles ED Mid BA Drivers

4 ​ x Knowles SWFK Treble BA Drivers.

Frequency Response

10Hz — 40kHz

Impedance

10Ω @1kHz

Sensitivity

106dB/mW @1kHz

IEM Shell

DLP 3D Printed Photosensitive Resin

Cable

High-purity Pure Silver Cable w/ 8 Strands

of 28 Wires Each (Total 224 Wires)

Cable Length

1.2M

Cable Connector (IEM)

Expanded MMCX

Cable Connector (Source)

Straight Twist-lock Swappable

3.5mm Single-ended & 4.4mm Balanced Plugs

Weight

(Single IEM, without Cable)

7g

Supplied Ear-tips

Foam Ear-tips x 2 Pairs (M)

Bass Ear-tips x 3 Pairs (S/M/L)

Balanced Ear-tips x 3 Pairs (S/M/L) (M pre-installed)

Vocal Ear-tips x 3 Pairs (S/M/L)

SpinFit Ear-tips x 3 Pairs (S/M/L)

Dual-flange Ear-tips x 2 pairs (M)

HS18 Ear-tips x 3 Pairs (S/M/L)

Supplied Accessories

Storage Case x 1

Cleaning Brush x 1

MMCX Quick-release Tool x 1

Magnetic Cord Clip x 1

Quick Start Guide x 1
