FiiO announce FH19 Flagship Hybrid In-Ear Monitors. Featuring Custom-built Drivers for a rich, musical sound

Two Dynamic + Six BA Driver design. Featuring all-new 13.7mm Push-Pull Dual Dynamic Drivers together with Customised Knowles BA Drivers. High-purity Silver Cable, with Swappable 3.5mm/4.4mm Plugs. Available from August, priced £549 / $599 / €649

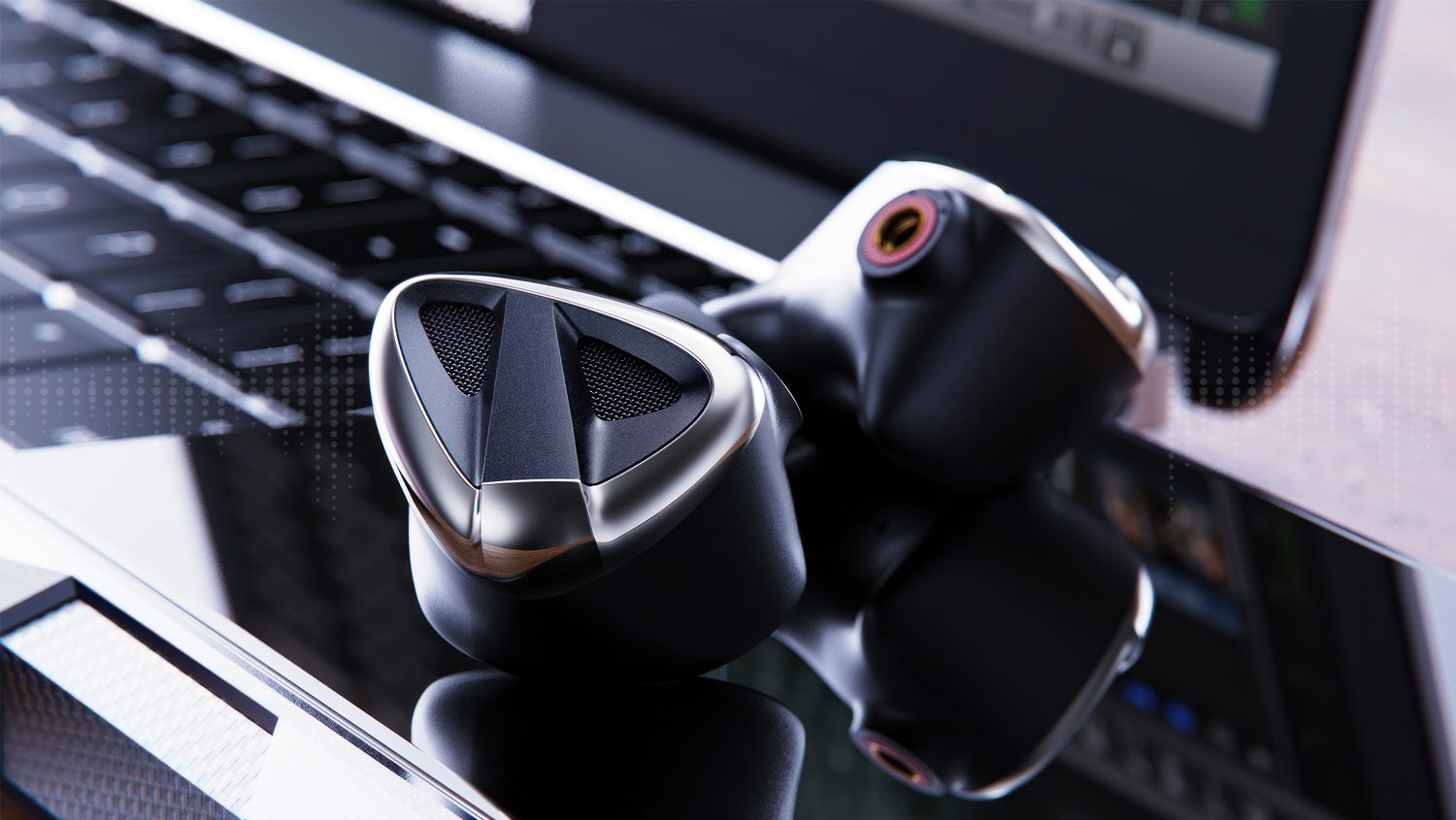

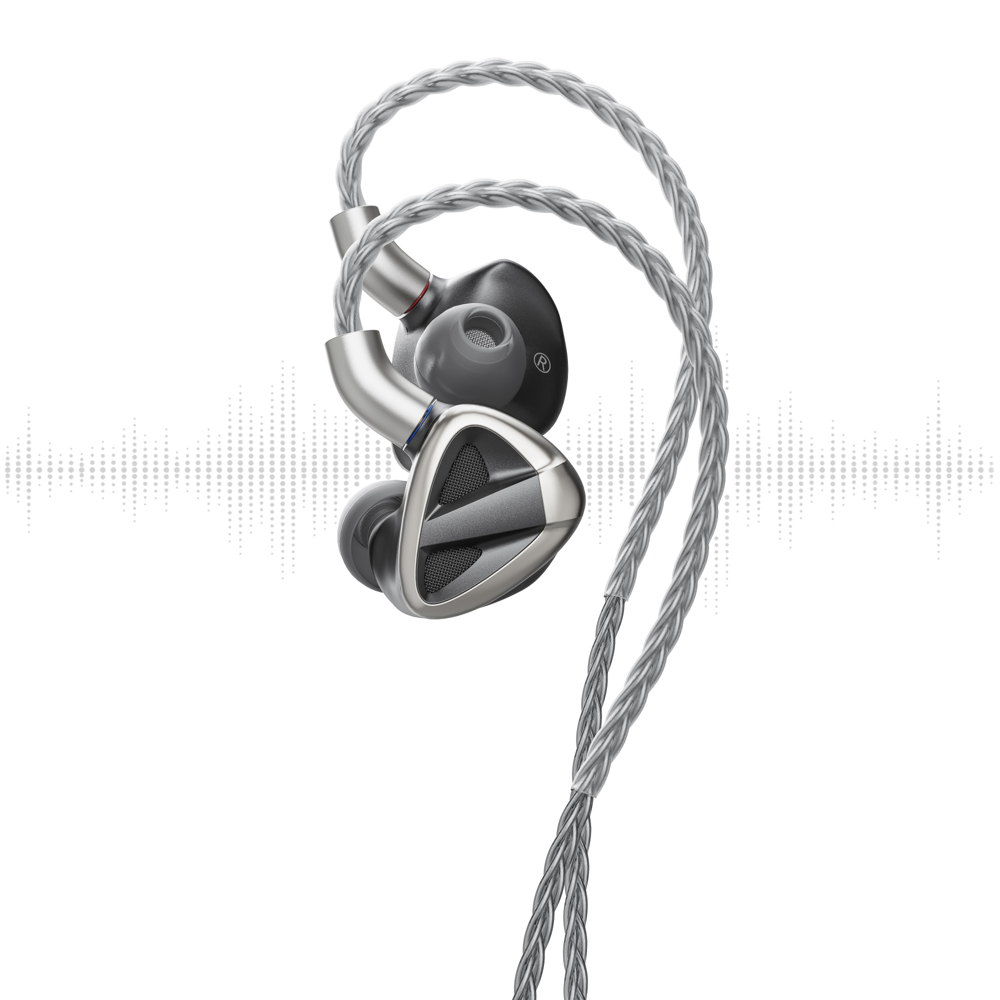

FiiO FH19 In-ear Monitors
FiiO FH19 In-ear Monitors

Building upon the success of previous award-winning portable audio equipment, and utilising the expertise that has produced its highly respected range of Digital Audio Players (DAPs)Headphone DACs and Desktop Streamers, the new FH19 are FiiO's flagship Hybrid In-ear Monitor (IEM) headphones.

KEY FEATURES:

Two Dynamic + Six Balanced Armature Driver Configuration: The new FiiO FH19 features a dual-dynamic and six balanced-armature driver configuration. FiiO's Engineering Team has worked closely with Tokyo Onkyo Co. Ltd. in Japan to develop an all-new Push-pull Dual Dynamic Driver unit to handle the bass frequencies. This driver features greatly enhanced low-frequency extension, cohesion, and speed. The mid-to-high frequencies within the FH19 are handled by specially customised Knowles enhanced midrange Balanced Armature (BA) drivers, which achieve greater sound energy density for a rich musical sound that doesn't sacrifice detail.

The Push-pull Dual Dynamic Driver unit used in the FH19 employs two 13.7mm high-magnetic dynamic drivers with PU+DLC composite diaphragms, arranged in an opposing configuration. When the diaphragms move back and forth, the overall movement direction of the two dynamic drivers remains consistent, ensuring phase consistency. This effectively doubles the driving force, and the diaphragms can provide air damping to each other. This makes the dynamic drivers exhibit more stable movement and fully suppress any residual sound after the audio signal stops.

Compared to typical dynamic drivers, push-pull dual dynamic drivers require only half the amplitude to achieve the target sound pressure level. This results in smaller diaphragm displacement, significantly improving linear driving performance and further reducing intermodulation distortion, allowing the driver unit to deliver cleaner sound.

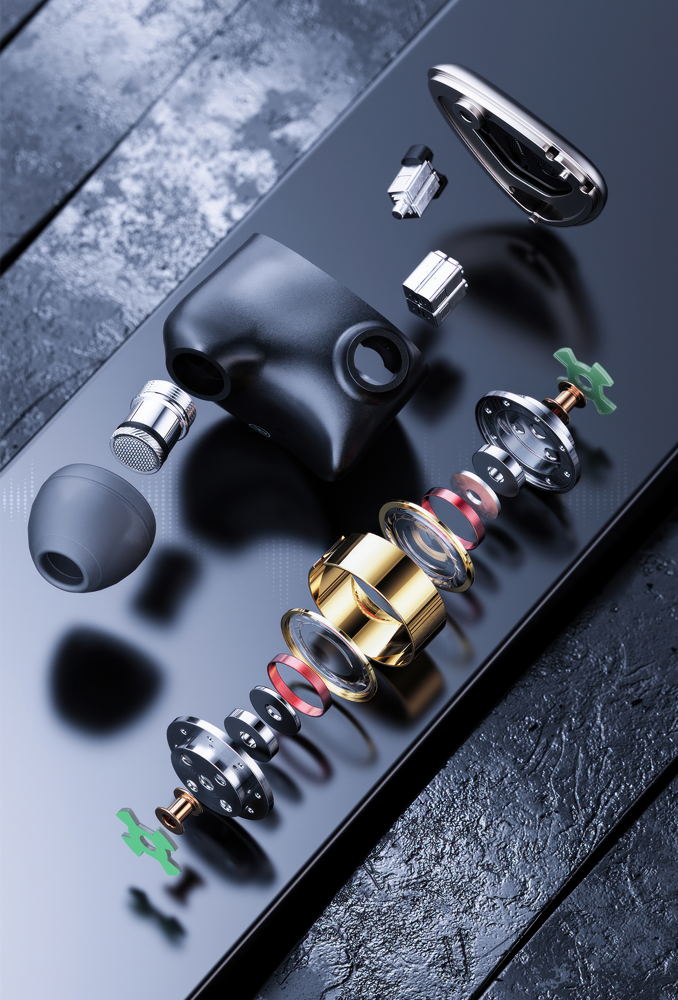

FiiO FH19 Exploded View
FiiO FH19 Exploded View

Semi-open Design: The FH19 adopts a semi-open design that has been specially tuned to combine with FiiO’s front and rear cavity balanced pressure relief technology – resulting in and more natural and relaxed sound, with a wide soundstage. This design efficiently balances the internal air pressure, eliminating the feeling of pressure on the eardrum, ensuring long periods of listening without fatigue.

The FH19's mid-frame is made from a Titanium, and the shell fashioned from 7000 Series Aerospace Aluminium — ​ ensuring a strong, yet lightweight pair of IEMs.

Suspended Voice Coil: To achieve flagship-level driver performance, the FIIO FH19 utilises a suspended voice coil design, with voice coil leads routed directly from the centre hole beneath the diaphragm — allowing them to float within the gap. This approach was chosen as it eliminates unnecessary contact and avoids additional adhesive load. Compared to some conventional diaphragms, this suspended voice coil design within the FH19 ensures uniform and smooth diaphragm movement and minimises interference.

Four-way Acoustic Design: FiiO's engineers have designed the FH19 to use its low-frequency and mid-frequency drivers in a precisely controlled four-way crossover design. For the low frequencies, custom Push-pull Dual-dynamic Driver units are employed, and a ‘turbine low-frequency boost technology’ is used for physical low-pass filtering, resulting in a relaxed yet natural bass.

For the mid-frequencies, the FH19 introduces an innovative ‘3+1 Semi-open’ acoustic layout of Balanced Armatures. This is complemented by a newly designed resonant cavity, allowing for two separately managed mid-frequency zones that result in richer and more emotionally engaging mids. For high frequencies, the FH19 adopts a coaxial design with an acoustic guide, whilst also incorporating Rubycon Audiophile-grade Film Crossover Capacitors.

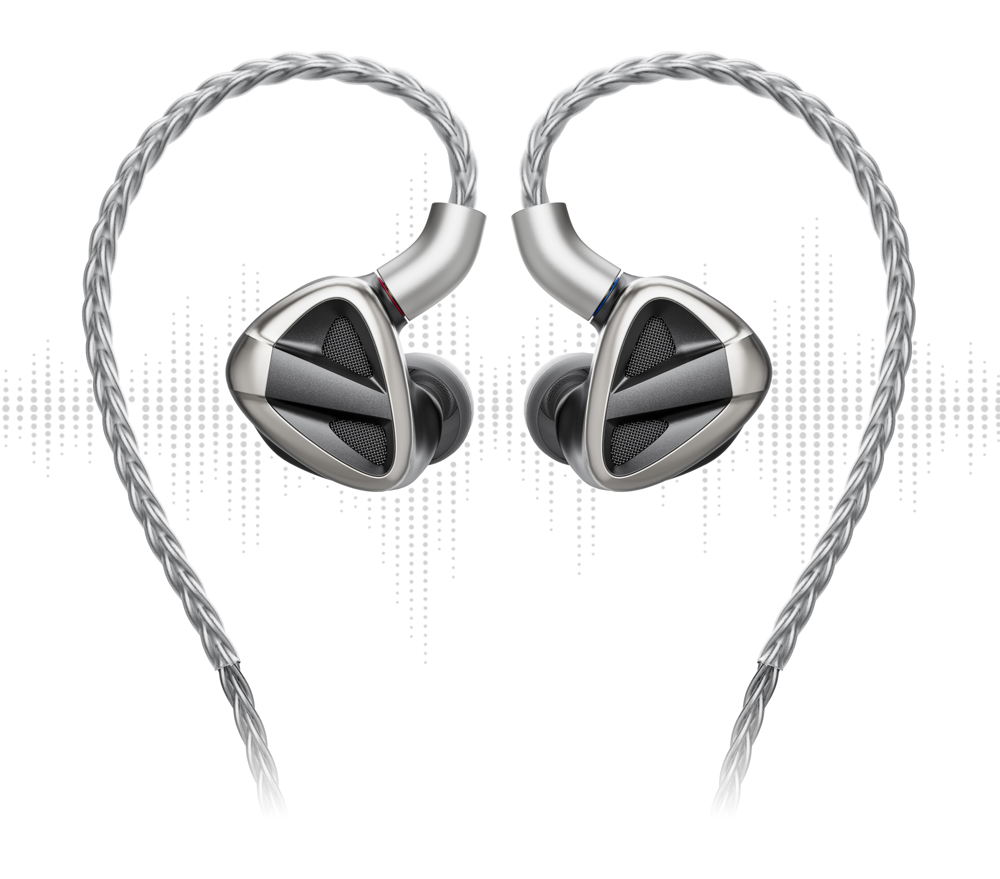

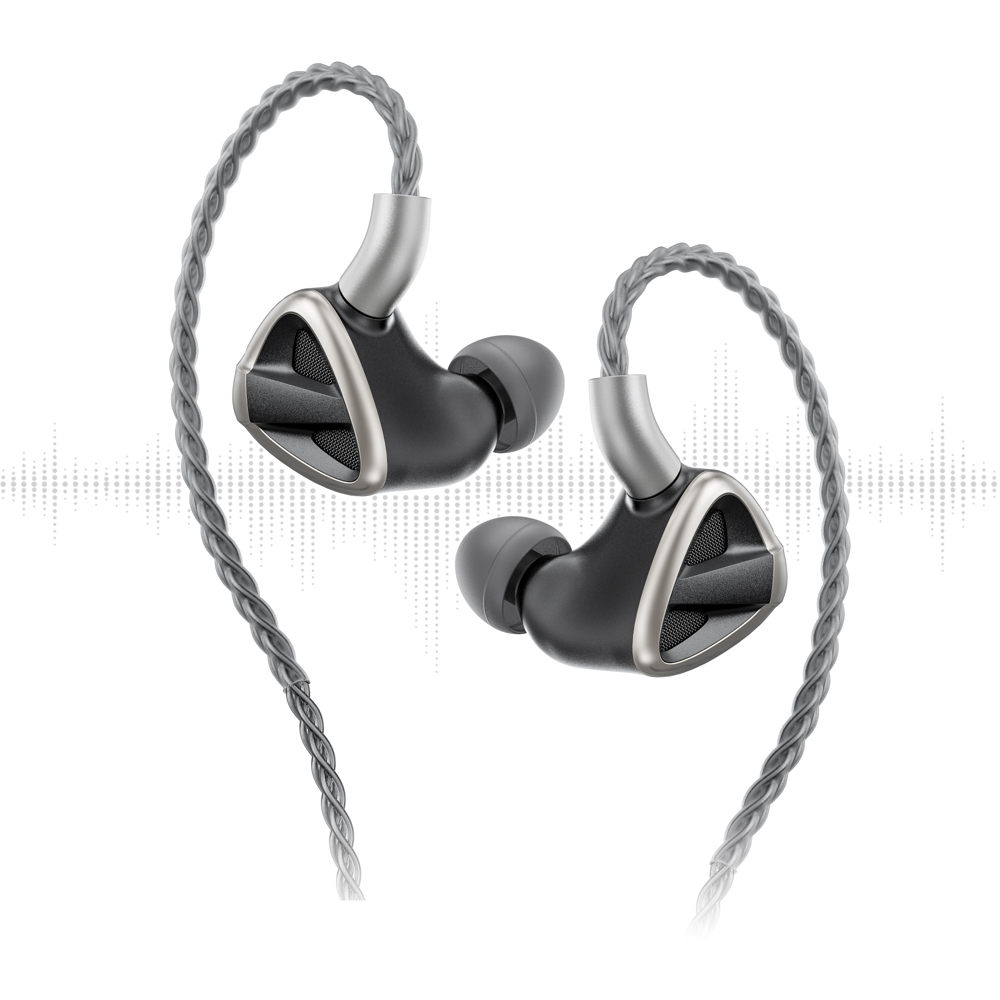

FiiO FH19 In-ear Monitors
FiiO FH19 In-ear Monitors

Rubycon Audiophile-grade Film Crossover Capacitors: The FH19 employs the same high-precision audiophile-grade film crossover capacitors as those found in its FA19 BA IEMs. Whereas typical resistors used for crossovers can have an error tolerance of around 1%, the FH19’s resistors have an impressively low error tolerance of just 0.1%. Compared to ordinary ceramic capacitors, the FH19 not only attains more accurate crossover points, but also features enhanced high-frequency resolution without sacrificing finesse.

S.Turbo Patented Acoustic Design: FiiO's patented S. Turbo design ingeniously leverages sound wave guidance properties, enhancing bass performance through a turbine-shaped structure. The result is deep and vibrant bass. Additionally, the design cleverly filters out excess mid-to-high-frequencies from the FH19's dynamic drivers, ensuring smooth transitions between the low and mid-high frequencies. The result is a more powerful and robust sound.

Swappable audio filters: The FH19 comes with three pairs of swappable audio filters. Each filter has different internal damping and mesh density, allowing you to adjust the sound profile of the FH19, according to your personal preference:

  • Red audio filter. Enhances low frequencies, providing powerful and impactful bass
  • Black audio filter. Offers balanced sound that is clear and transparent
  • Green audio filter. Delivers refined and detailed treble
FH19 Swappable Audio Filters
FH19 Swappable Audio Filters

High-end Cable with Swappable Plugs: The FH19 comes supplied with a high-purity pure silver cable, consisting of 8 strands of 28 wires each for a total of 224 wires. Each individual wire is independently insulated, and the cable is twisted using a Litz structure. The cable sheath is made from transparent TPU; effectively preventing yellowing due to prolonged use and stiffening of the cable due to use in low-temperature environments.

The FiiO FH19 comes with two twist-lock swappable jack plugs — 1 x 3.5mm single-ended, and 1 x 4.4mm balanced — ensuring the IEMs can be used with a wide range of audio devices including, Digital Audio Players (DAPs), Headphone Amplifiers, PCs and more.

In addition, to ensure the best fit and listening experience, the FH19 are supplied with 22 pairs of ear tips — including SpinFit, Foam, Balanced, and Dual Flange — in a variety of different sizes.

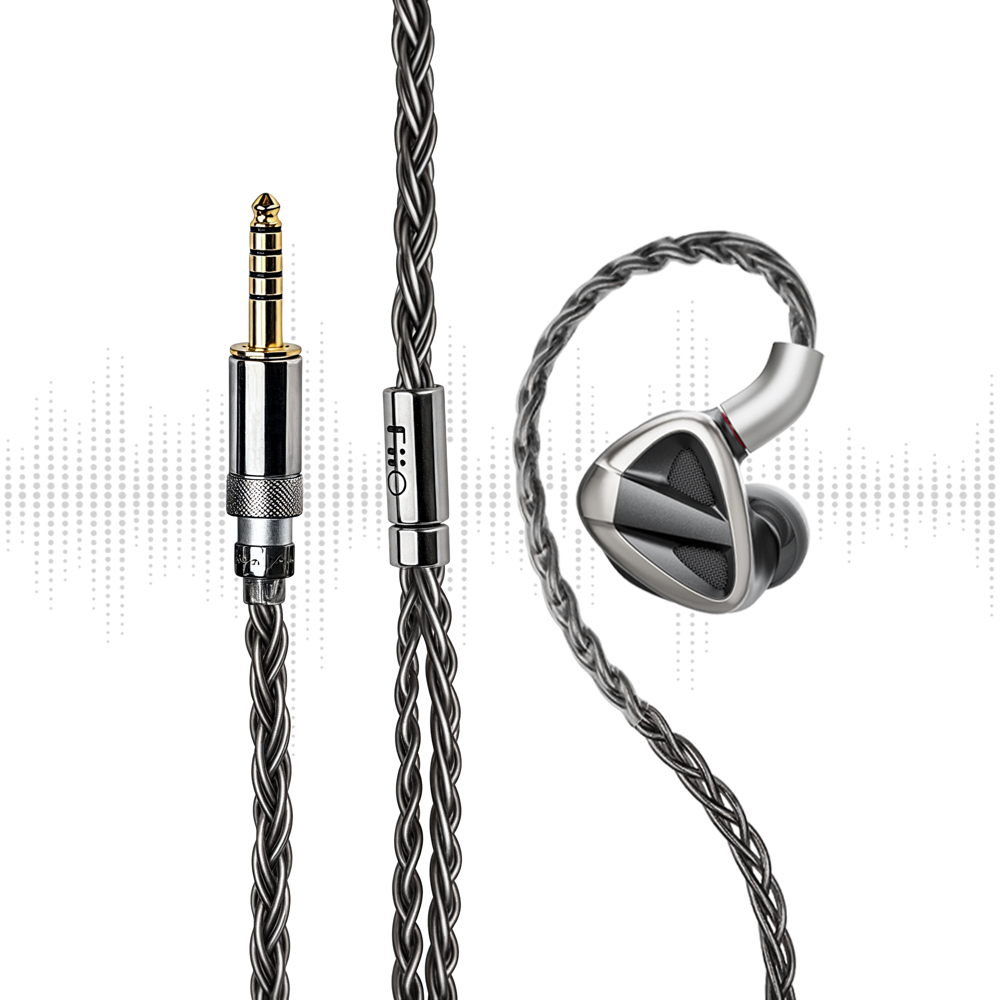

FH19 features both 3.5mm Single-ended & 4.4mm Balanced Swappable Plugs
FH19 features both 3.5mm Single-ended & 4.4mm Balanced Swappable Plugs

The FiiO FH19 will be available from August, priced £549 / $599 / €649

For review samples of the FH19 IEMs please contact Starscream Communications.

For review samples of the M23 Digital Audio Player, please contact Starscream Communications.

Starscream Communications

Starscream Communications



SPECIFICATION:

Earphone Type

Dynamic-Balanced Armature Hybrid In-ear Monitors

Drivers Per Ear

2 x Push-pull Dynamic

4 x Custom Knowles Enhanced Mid-frequency Balanced Armature

2 x Knowles SWFK Treble Balanced Armature

Frequency Response

8Hz — 40kHz

Impedance

16Ω @ 1kHz

Sensitivity

109dB/mW@1kHz

Cable

8 Strands (Totalling 224 Wires) of High-purity Silver

Cable Length

1.2M

Earphone Connector

Expanded MMCX

Audio Plug

3.5mm & 4.4mm (Straight Twist-lock Swappable)

INCLUDED IN THE BOX:

  • 1 x Pair Hybrid FH19 IEMs
  • 3 x Pairs HS20 Silicone Ear Tips (S/M/L)
  • 3 ​ x Pairs HS18 Ear Tips (S/M/L)
  • 3 ​ x Pairs SpinFit Ear Tips (S/M/L)
  • 2 x Pairs Foam Ear Tips (M)
  • 3 x Pairs Bass Ear Tips (S/M/L)
  • 3 x Pairs Balanced Ear Tips (S/M/L) (Medium pre-installed)
  • 3 x Pairs Vocal Ear Tips (S/M/L)
  • 2 x Pairs Dual-flange Ear Tips (M)
  • 1 x HB7 Carrying Case
  • 1 x Cleaning Brush
  • 1 x MMCX Quick-release Tool
  • 1 x Magnetic Cable Clip
  • 1 x Set of Red (Bass) / Black (Balanced) /Green (Treble) Audio Filters
  • 1 x High-purity Silver 1.2M Earphone Cable
  • 1 x 3.5mm Single-ended Swappable Plug
  • 1 x 4.4mm Balanced Swappable Plug
  • 1 x Quick-start Guide

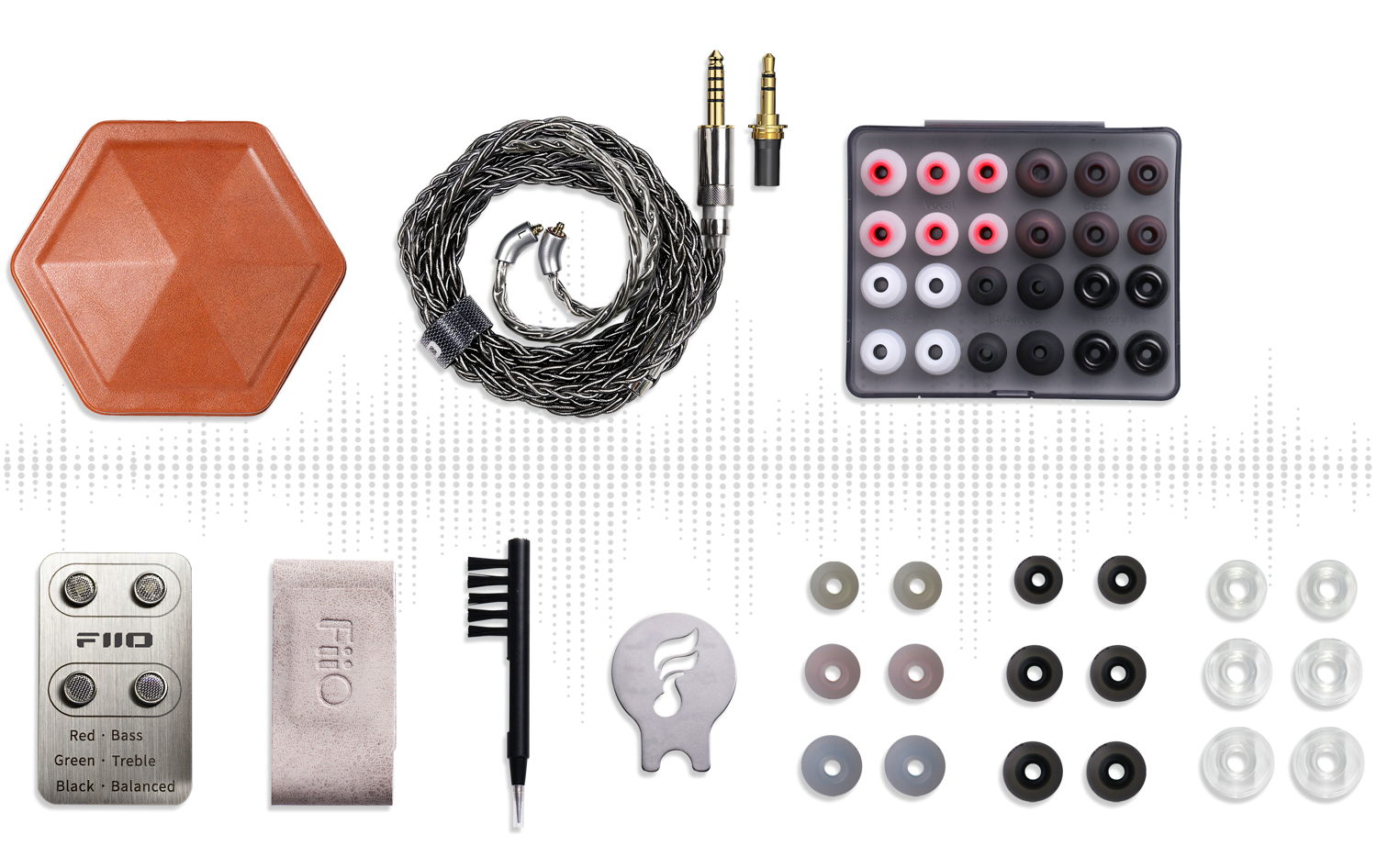

FH19 Supplied Accessories
FH19 Supplied Accessories
